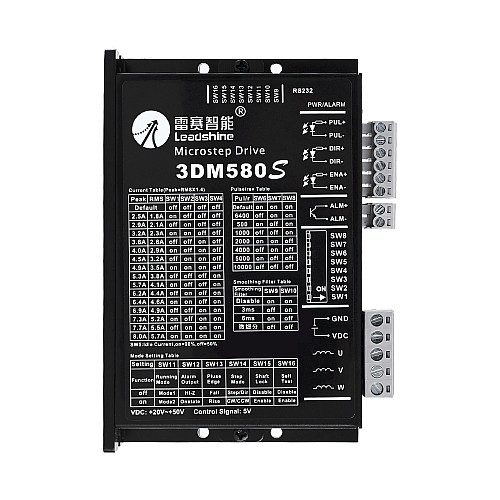

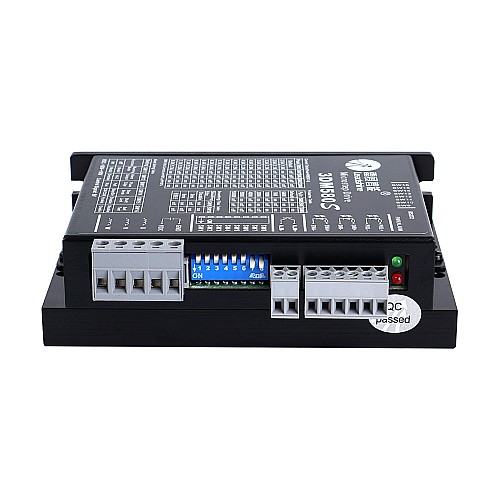

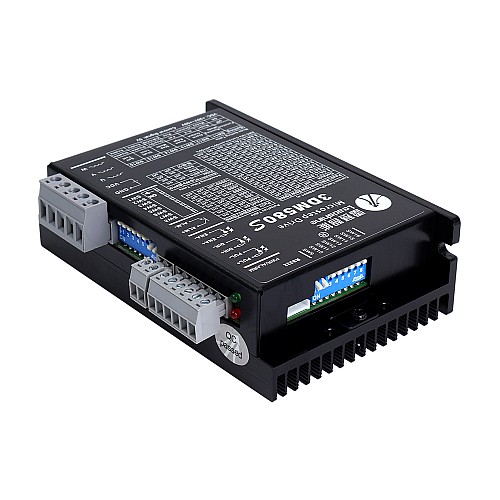

Leadshine 3-Phase Digital Stepper Driver 0.5-8.0A 20-50VDC for Nema 17, 23, 24, 34 Stepper Motor
$53.69
5 + $50.43
10 + $47.55
50 + $44.98
100 + $42.67
- In Stock: 10000
- Brand: Leadshine
- Model: 3DM580S
- Gross Weight: 0.36kg
- Certificated: ISO, CE, UKCA
Available Options
Ships within 24 hours for items in stock!
Suitable for a wide range of Stepper motors, from NEMA frame size 17 to 34. It can be used in various kinds of machines, such as laser cutters, laser markers, high precision X-Y tables, labeling machines, and so on. Its unique features make the 3DM580S an ideal solution for applications that require both low-speed smoothness and high speed performances.
Key Features:
- Step & direction(PUL/DIR) or CW/CCW(double pulse) control
- Suggested supply voltage 20 - 50 VDC, up to 74VDC
- 500KHz max pulse input frequency in duty cycle 50%
- 8 micro-step resolutions of 200 - 10,000 via DIP switches, or 200 - 51,200 via software(increase by 100)
- 16 output current settings of 2.1 - 8.0A via DIP Switches, or 0.5 - 8.0A via software(increase by 0.1)
- Configurable control command smoothing for reducing motor vibration
- Idle current reduction to 50% or 90% selection via SW5
- Convenient self-test for easy diagnosis
- Two motion modes of low-speed smooth and high-speed large torque
- Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise
- Soft-start with no “jump” when powered on
- Fault output
- Over-voltage, over-current protections
- CE certified and RoHS compliant
Electrical Specifications:
- Output Current: 0.5~8.0A(5.7RMS)
- Input Voltage: +20~74VDC(Typical 24 - 48VDC)
- Logic Signal Current: 7~16mA(Typical 10mA)
- Pulse Input Frequency: 0~500kHz
- Minimal Pulse Width: 1μS
- Isolation Resistance: 500MΩ
Operating Environment and other Specifications(Tj = 25℃/77℉):
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0℃ - 65℃
- Humidity: 40%RH-90%RH
- Operating Temperature: 0℃ - 50℃
- Vibration: 10-55Hz / 0.15mm
- Storage Temperature: -20℃ - 65℃
- Weight: Approx.250g(8.8oz)
Electrical Specification | |
Alarm Output | Yes |
Brake Output | No |
Control Modes | Pulse Mode |
Encoder Feedback | No |
Input Voltage Reference(V) | 24 - 48DC |
Integrated with Pulser | No |
Max. Output Current RMS(A) | 5.7 |
No. of Phase | 3 |
Input Voltage(V) | 20 - 50DC |
Output Current(A) | 0.5 - 8.0 |
Microstep(Steps/rev.) | 200 - 10000 |
Max. Pulse Input(kHZ) | 500 |
Pulse Width(μs) | 1 |
Physical Specification | |
Inventory Method | Dedicated Inventory |
