Digital Stepper Driver 2.1-11.7A 176-253VAC for 3-Phase Nema 34, 42, 52 Stepper Motor










Digital Stepper Driver 2.1-11.7A 176-253VAC for 3-Phase Nema 34, 42, 52 Stepper Motor
$154.53
5 + $146.40
10 + $138.27
50 + $130.13
100 + $122.00
- Model: 3DM2283T
- Stock Status: 100
Available Options

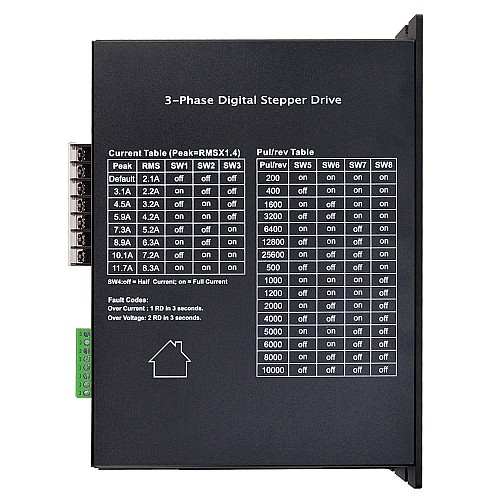

The 3DM2283T is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, 3DM2283T can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make 3DM2283T an ideal choice for high requirement applications.
Key Features:
- Anti-Resonance provides optimal torque and nulls mid-range instability
- Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
- Supply voltage up to 240 VAC
- Output current programmable, from 2.1A to 11.7A. It can also be set via DIP switches
- Pulse input frequency up to 200 KHz, TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 3-phase motors
- Support PUL/DIR and CW/CCW modes
- Over-voltage, Under-voltage, over-current, phase-error protections
Electrical Specifications:
- Output Peak Current: 2.1 - 11.7 A
- Input Voltage: 176 - 253 VAC
- Logic Signal Current: 7 - 16 mA (Typical 10 mA)
- Pulse Input Frequency: 0 - 200 kHz
- Isolation Resistance: 500 MΩ
Operating Environment and other Specifications(Tj = 25℃/77℉):
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0 - 50 ℃
- Humidity: 40% - 90% RH
- Operating Temperature: 70 ℃ MAX
- Vibration: 10-55Hz/0.15mm
- Storage Temperature: -20 - 65 ℃
- Weight: Approx.1300 g (45.86 oz)
Resources
- Manual: 3DM2283T.pdf
Electrical Specification | |
Control Modes | Pulse Mode |
Encoder Feedback | No |
Integrated with Pulser | No |
No. of Phase | 3 |
Input Voltage(V) | 176 - 253 AC |
Output Current(A) | 2.1 - 11.7 |
Microstep(Steps/rev.) | 200 - 10000 |
Max. Pulse Input(kHZ) | 200 |
Pulse Width(μs) | 2.5 |
File | Size | |
---|---|---|
3DM2283T.pdf | 731.73KB | Download |
