Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC

Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
Nema 23 Bipolar 3Nm (425oz.in) 4.2A 57x57x114mm 4 Wires Stepper Motor CNC
$34.72
5 + $32.63
10 + $30.55
50 + $28.47
100 + $26.39
  • Model: 23HS45-4204S
  • Stock Status: 5000

Available Options

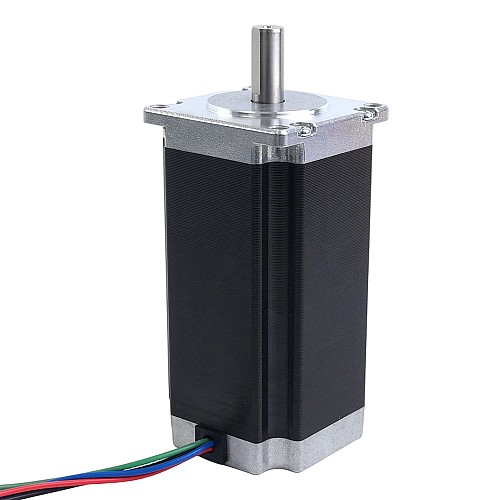

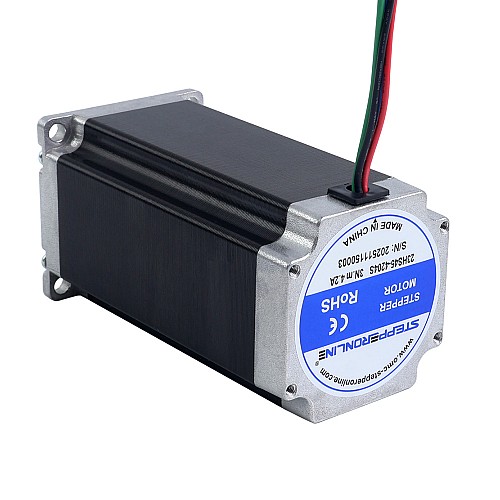

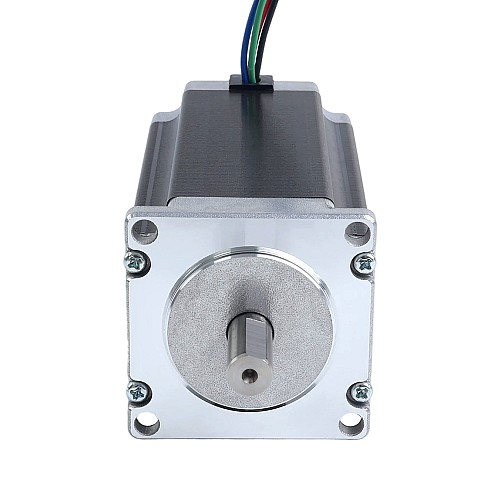

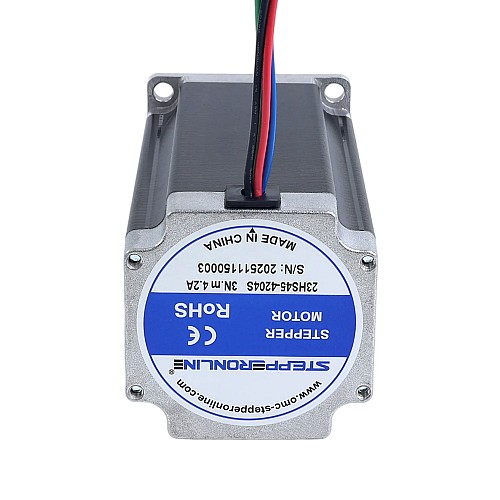

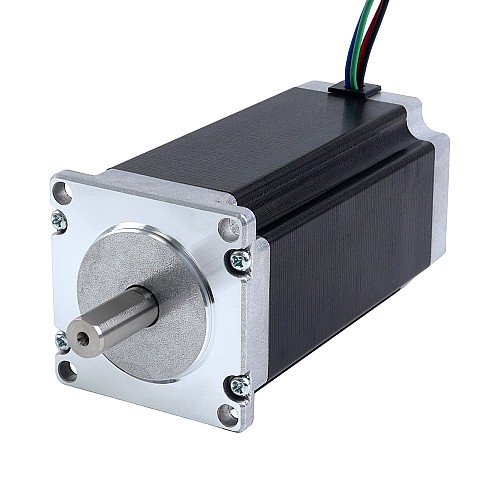

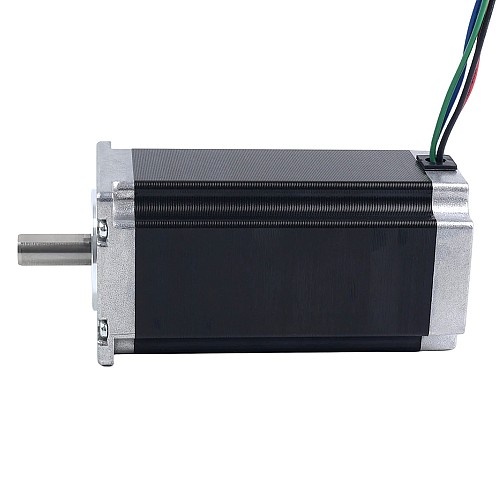

This is the strongest Nema 23 stepper cnc motors, it with step angle 1.8deg and size 57x57x114mm. It has 4 wires, each phase draws 4.2A, with holding torque 3.0Nm (425oz.in).


Electrical Specification

  • Manufacturer Part Number: 23HS45-4204S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 3.0Nm(425oz.in)
  • Rated Current/phase: 4.2A
  • Phase Resistance: 0.9ohms
  • Inductance: 3.8mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 57 x 57mm
  • Body Length: 113mm
  • Shaft Diameter: Φ10mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 400mm
  • Weight: 1.8kg

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Electrical Specification
Inductance(mH) 3.8
Phase Resistance(ohm) 0.9
Rated Current(A) 4.2
Step Angle(deg.) 1.8
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 300
Holding Torque(oz.in) 425
Physical Specification
IP Rating 40
Frame Size(mm) Nema 23 (57 x 57)
Body Length(mm) 113
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D-Cut
Shaft Diameter(mm) 10
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 400
Weight(g) 1600
  • Motor Shaft
  • Cable
  • Connector
  • Encoder
  • Brake
  • Gearbox


File Size
23HS45-4204S_Full_Datasheet.pdf 150.68KB Download
23HS45-4204S.STEP 1.93MB Download
23HS45-4204S_Torque_Curve.pdf 155.07KB Download
