06 Aug
0
5053
Our answer is yes. We have tested all of drivers in our company, and the results are ok. But we are still not recommended it, because the main components’ supplier declare the working voltage is 4.5~5..
06 Aug
0
32108
Normally, we don’t ask stepper motor’s highest frequency, we think the question should be stepper motor’s maximum speed.
Because it’s meaningless to discuss the highest frequency without regard to dr..
06 Aug
0
3657
We raden u af dat te doen.
Omdat wanneer u de behuizing opent, de lagers loskomen van het lagerhuis, wat de concentriciteit van de motorrotor beïnvloedt.
Als u de kabel wilt vervangen door een langere..
06 Aug
0
32506
When using a stepper motor, you'll need a power supply to give power to stepper motor. A right power supply can make your stepper motor working at optimum performance, Instead, a wrong power supply mi..
06 Aug
1
29587
Please follow below steps to connect stepper driver to Arduino:
1. Connect driver’s DIR+ and PUL+ to Arduino’s digital port. eg. PIN8 and PIN9.
2. Connect PUL- and DIR- to Arduino’s GND.
3. Write prog..
06 Aug
0
4028
Please follow below steps to troubleshoot the problem:
1）Please confirm if the current of pulse signal by the controller is enough. Normally, the current should be over 10mA in order to make the opt..
06 Aug
0
8739
The key factor effect motor’s life time is two bearings inside the motor. Normally, the standard bearing’s life time is about 6,000 hours long time continuous working.
Some time, you might need longe..
06 Aug
0
3524
Two key factors of VFD(Variable Frequency Drive) should be considered when you choosing VFD to match spindle motor:
1. Power:
Choose equal or higher power than spindle motor.
2. Voltage:
Make sure the..
06 Aug
0
3794
There are two possibilities:
1.You have standard gearbox.
Yes, just make sure the motor size and shaft can match your gearbox.
2.You don’t have standard gearbox, and you want use our existing gearbox...
06 Aug
0
5945
1.Usually, the stepper drivers matching the motors are listed on related products column, which is placed on the right side of the website.
2.Regarding open-loop stepper motor, it is fine to select ..
06 Aug
0
14495

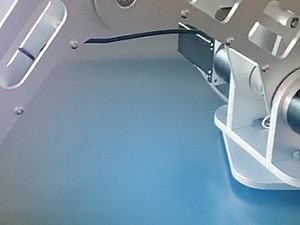

Simply, we have provided a formula: v=f/n
v: motor speed(rps)
f: frequency(pps)
n: number of microstep, you can find it on stepper driver.
eg. When stepper motor driver receiving frequency 4000pps fro..
06 Aug
0
4749
Firstly, CL57T is stepper driver, not a controller. As a stepper driver, it don’t have any controlling function.
Secondly, for debugging purpose, this driver can be debugged through RS232, you can mod..
