Nema 11 Stepper Lead Screw Linear Actuator 1.0A Stroke 100mm 0.1Nm(14.16oz.in) Lead 10.16mm(0.4") with Sensor

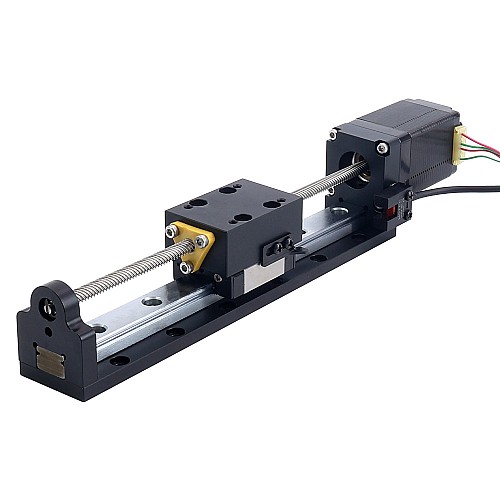

This is an LMD series Nema 11 stepper motor linear actuator. This type of actuator is composed of a highly integrated linear stepper motor and a guide rail slide. It has the advantages of simple structure and small installation space. Since there is no coupling, its accuracy is higher than that of linear actuators with conventional coupling structures. In addition, the actuator is equipped with a photoelectric sensor for detecting the zero point position. This actuator is widely used in the medical industry, measurement, laser welding, laser cutting, small CNC machine tools, engraving, milling machines, etc.

Electrical Specification

• Manufacturer Part Number: LMD11S18ND10-100
• Screw Type: Trapezoidal Lead Screw
• Step Angle: 1.8deg
• Holding Torque: 0.1Nm(14.16oz.in)
• Maximum Thrust: 40N
• Rated Load Capacity: 120N
• Rated Current/phase: 1.0A
• Phase Resistance: 3.7ohms ± 10%
• Inductance: 3.7mH ± 20%(1KHz)

Physical Specification

• Motor Size: 28 x 28 x 46mm
• Lead Screw Length: 147mm
• Lead Screw Diameter: 4.76mm
• Max. Stroke Length: 100mm(3.937")
• Max. Speed: 152.4mm/s
• Position Accuracy: ± 0.02mm
• Lead/Step: 0.0508mm(0.002")
• Lead/Revolution: 10.16mm(0.4")
• Number of Leads: 4
• Cable Length: 320mm
• Weight: 0.492kg

Motor Connection

Photoelectric Switch Sequence
