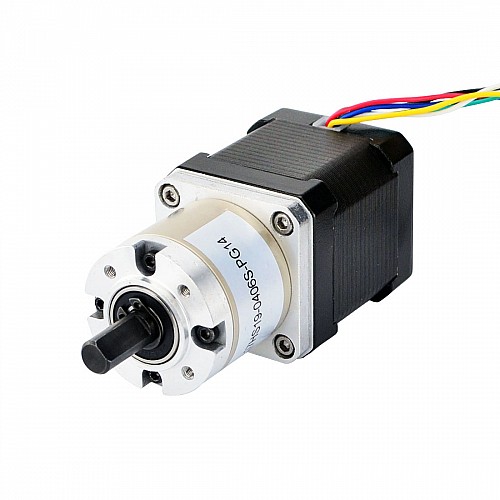

Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox

Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
Nema 17 Stepper Motor Unipolar L=48mm w/ Gear Ratio 14:1 Planetary Gearbox
$28.85
5 + $28.13
10 + $27.41
50 + $26.69
100 + $25.96
  • Model: 17HS19-0406S-PG14
  • In Stocktest: 200
  • SKU: 17HS19-0406S-PG14

Available Options

This unipolar Nema 17 stepper motor with 48mm body and 1.68A rated current, integrated a planetary gearbox of 13.73:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.


Electrical Specification

  • Manufacturer Part Number: 17HS19-0406S-PG14
  • Motor Type: Unipolar Stepper
  • Step Angle: 0.131 deg
  • Holding Torque without Gearbox: 32Ncm(45.32oz.in)
  • Rated Current/phase: 0.4A
  • Phase Resistance: 30 ohms
  • Voltage: 12V
  • Inductance: 25 mH ± 20%(1KHz)

Gearbox Specifications

  • Gearbox Type: Planetary
  • Gear Ratio: 13.73: 1
  • Efficiency: 81%
  • Backlash at No-load: <=1 deg
  • Max.Permissible Torque: 3Nm(425oz.in)
  • Moment Permissible Torque: 5Nm(708oz.in)
  • Shaft Maximum Axial Load: 50N
  • Shaft Maximum Radial Load: 100N

Physical Specifications

  • Frame Size: 42 x 42mm
  • Motor Length: 48mm
  • Gearbox Length: 35mm
  • Shaft Diameter: Φ8mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 6
  • Lead Length: 500mm
  • Weight: 560g

Connection

A+
O+
A-
B+
O-
B-
BLK
YEL
GRN
RED
WHT
BLU

Resources

Electrical Specification
Current(A) 0.4
Holding Torque w/o Gearbox(N.m) 0.32
Inductance(mH) 25
Phase Resistance(ohm) 30
Bipolar/Unipolar Unipolar
Physical Specification
IP Rating 40
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 83
Gearbox Type Economy Planetary
Gear Ratio 13.73
Backlash at No-load <=1 deg
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D
Shaft Diameter(mm) 8
Shaft Length(mm) 20
No. of Lead 4
Lead Length(mm) 500
Weight(g) 560
File Size
17HS19-0406S-PG14_Full_Datasheet.pdf 134.62KB Download
17HS19-0406S-PG14.STEP 2.42MB Download
17HS19-0406S-PG14_Torque_Curve.pdf 163.18KB Download
