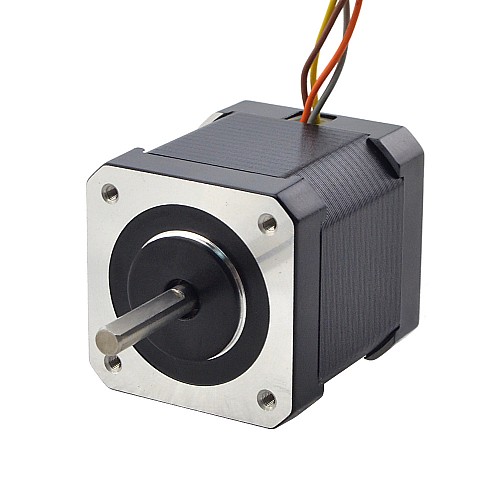

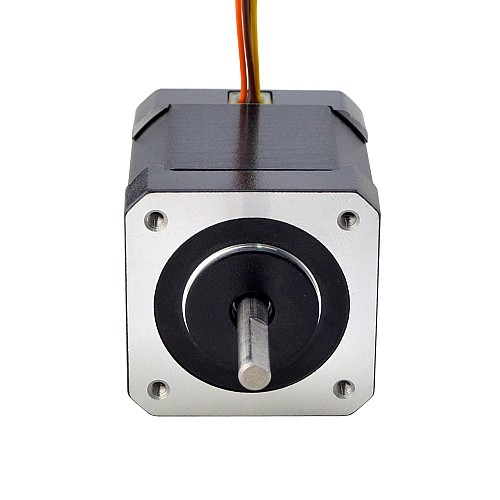

Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C

Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
Nema 17 High Temp Voron Stepper Motor 55Ncm(77.93oz.in) Insulation Class H 180C
0 reviews - Write a review
$17.99
5 + $17.01
10 + $16.12
50 + $15.33
100 + $14.61
  • In Stock: 10000
  • Model: 17HS19-2504S-H
  • Gross Weight: 0.43kg
  • Certificated: ISO, CE, UKCA, RoHS

Available Options

Add to Cart
Question
Add to Wish List Compare this Product
Ships within 24 hours for items in stock!

This custom-made high temperature rated NEMA 17 stepper motor is special for VORON printers. It offers a 1.8 degree step angle and high torque with a 48mm body length for use in environments up to 180C.


Electrical Specification

  • Manufacturer Part Number: 17HS19-2504S-H
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8deg
  • Holding Torque: 55Ncm(77.93oz.in)
  • Rated Current/phase: 2.5A
  • Phase Resistance: 1.1ohms
  • Inductance: 1.6mH±20%(1KHz)
  • Insulation Class: H 180C(356F)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 48mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 24mm
  • D-cut Length: 20mm
  • Number of Leads: 4
  • Lead Length: 1000mm

Connection

A+
A-
B+
B-
GRY
BRN
ORG
YEL
Electrical Specification
Inductance(mH) 1.6
Open-loop/Closed-loop Open-loop
Phase Resistance(ohm) 1.1
Product Type High Temp Stepper Motor
Rated Current(A) 2.5
Step Angle(deg.) 1.8
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 55
Holding Torque(oz.in) 77.93
Insulation Class H 180C(356F)
Physical Specification
Inventory Method Dedicated Inventory
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 48
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 1000


File Size
17HS19-2504S-H_Full_Datasheet.pdf 145.87KB Download
17HS19-2504S-H_Torque_Curve.pdf 271.83KB Download
