Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector

Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
Nema 17 Bipolar 45Ncm (63.74oz.in) 1.5A 42x42x39mm 4 Wires w/ 1m Cable & Connector
$8.67
5 + $8.21
10 + $7.76
50 + $7.30
100 + $6.85
  • Model: 17HS15-1504S1
  • In Stocktest: 1001
  • SKU: 17HS15-1504S1

Available Options

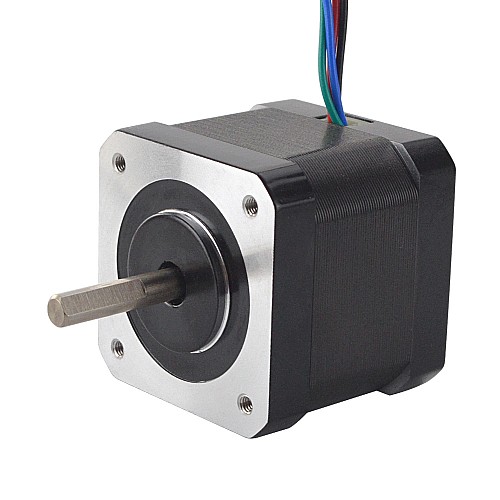

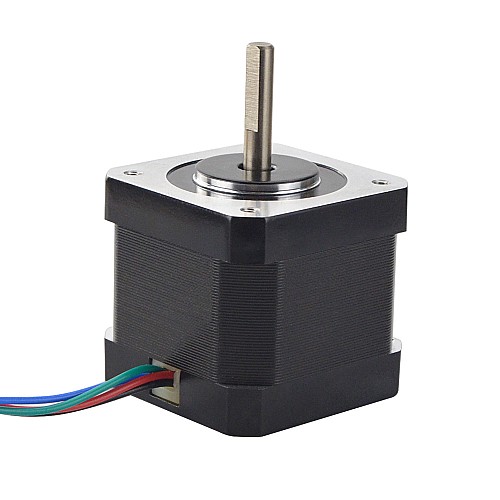

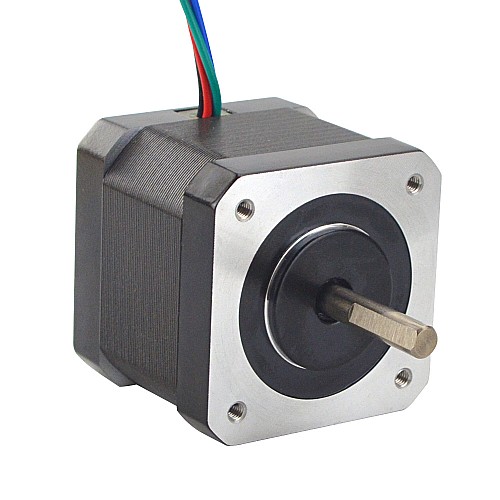

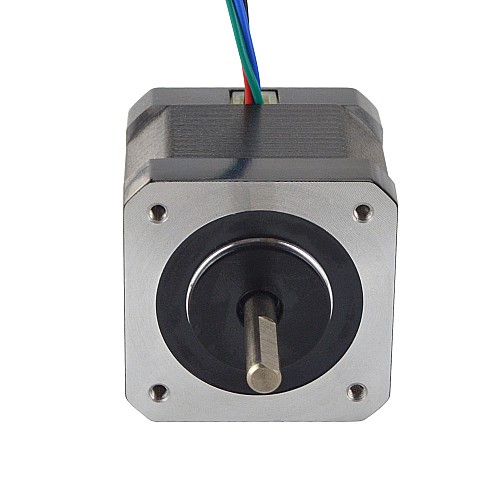

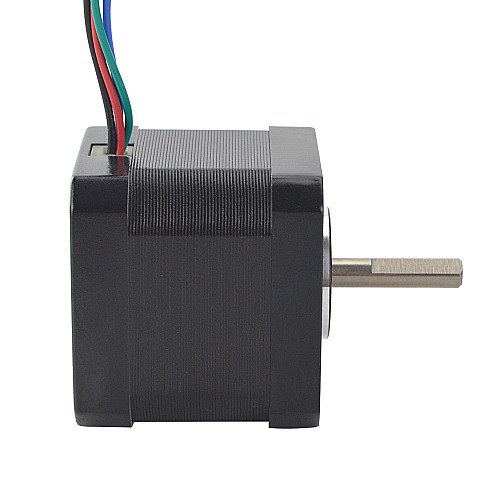

This bipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x39mm. It has 4 wires, each phase draws current 1.50A, with holding torque 45Ncm (63.74oz.in).


Electrical Specification

  • Manufacturer Part Number: 17HS15-1504S1
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 45Ncm(63.74oz.in)
  • Rated Current/phase: 1.50A
  • Phase Resistance: 2.3ohms
  • Inductance: 4.4mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 42 x 42mm
  • Body Length: 39mm
  • Shaft Diameter: Φ5mm
  • D-cut Length: 15mm
  • Shaft Length: 24m
  • Number of Leads: 4
  • Lead Length: 1000mm
  • Weight: 280g

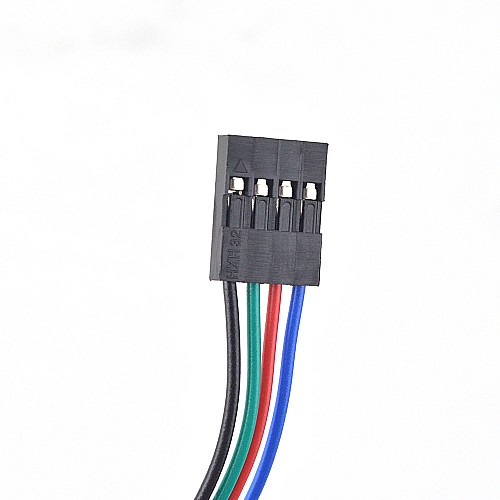

Connection

A+
A-
B+
B-
Black
Green
Red
Blue


Resources


Electrical Specification
Inductance(mH) 4.4
Phase Resistance(ohm) 2.3
Rated Current(A) 1.5
Bipolar/Unipolar Bipolar
Holding Torque(Ncm) 45
Holding Torque(oz.in) 63.74
Physical Specification
IP Rating 40
Frame Size(mm) Nema 17 (42 x 42)
Body Length(mm) 39
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 24
No. of Lead 4
Lead Length(mm) 1000
Weight(g) 280
File Size
17HS15-1504S1_Full_Datasheet.pdf 149.53KB Download
17HS15-1504S1.STEP 554.81KB Download
17HS15-1504S1_Torque_Curve.pdf 31.46KB Download
