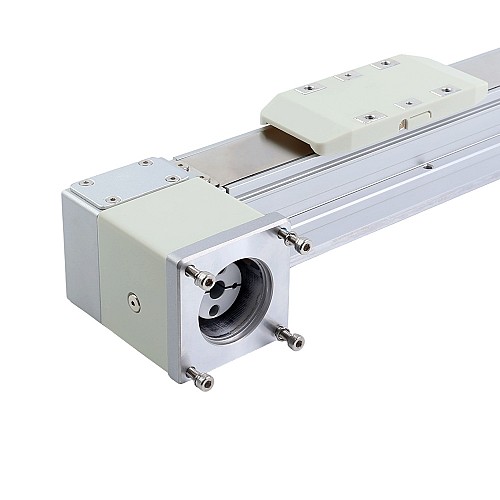

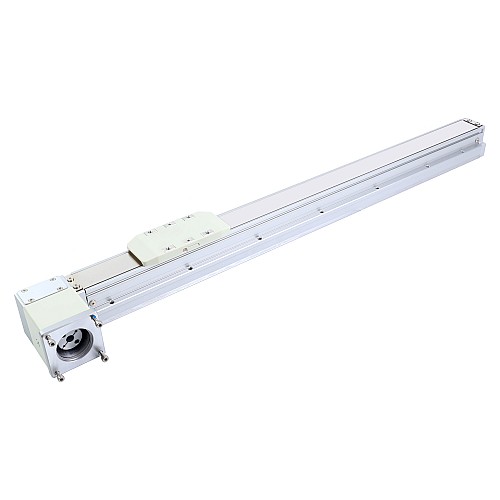

This LA5 series belt driven dustproof linear actuator offers a maximum horizontal payload of 15kg(33.07lb), a stroke length of 500mm(1.64ft) and maximum speed of 400mm/s(1.31ft/s).
Different from the linear actuators with exposed lead screws on the market, we have adopted a semi - enclosed dustproof design, which can effectively prevent debris during production from entering the actuator.
The LA series linear actuators feature a simple design and high cost-effectiveness. They are highly suitable for replacing pneumatic actuators in applications that demand a higher level of performance and control. They have advantages such as high precision, good efficiency, excellent heat dissipation, easy installation and low maintenance costs.

  • Part Number: LA5-23LL483-500
  • Position Accuracy: ± 0.04mm
  • Lead: 48mm(0.16ft)
  • Maximum Speed: 400mm/s(1.31ft/s)
  • Maximum Horizontal Payload: 15kg(33.07lb)
  • Rated Thrust: 51N
  • Sensor Type: NPN
  • Number of Sensors: 3
  • Belt Width: 10mm
  • Motor Frame: Nema 23 Closed Loop Stepper Motor
  • Stroke Length: 500mm(1.64ft)
  • Input Shaft Length: 21mm
  • Input Shaft Diameter: 8mm

Adapting Motors: Standard NEMA 23 closed-loop stepper motor with a shaft diameter of 8mm and a shaft length of 21mm.

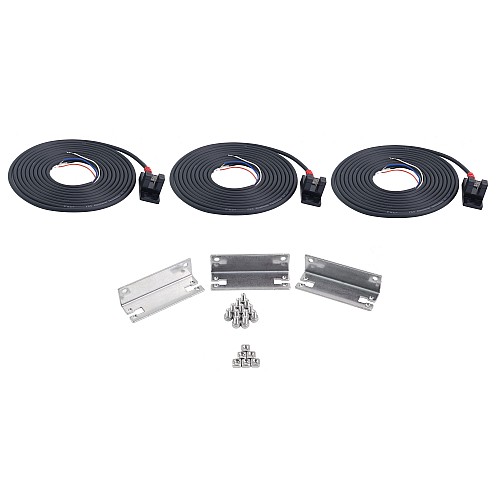

Please note: this linear actuator comes standard with 3 photoelectric sensors. If more are needed, they can be purchased via this link.
Physical Specification
Input Shaft Diameter(mm) 8
Input Shaft Length(mm) 21
Inventory Method Dedicated Inventory
Lead(mm/ft) 48/0.16
Linear Motor Type Built-in belt
Max. Horizontal Payload(kg/lb) 15/33.07
Max. Speed(ft/s) 1.31
Max. Speed(mm/s) 400
Motor Mounting Flange Nema 23 Closed Loop Stepper Motor
Motor Mounting Position Left Fold
Rated Thrust(N) 51
Stroke Length(mm/ft) 500/1.64
Transmission Method Belt Driven


File Size
LA5-23LL483-500.STEP 2.64MB Download
LA5-23LL483-500_Full_Datasheet.pdf 98.42KB Download
LA5_User_Manual.pdf 847.33KB Download
