DSY Series 200W CANopen DC Servo Motor 24-70VDC 0.637Nm 3000rpm 17-Bit Incremental Encoder IP65

0 reviews - Write a review

$117.68

5 + $113.92

10 + $110.38

50 + $107.06

100 + $103.94

In Stock: 200
Model: DSY-C200L2A2-M17S
Gross Weight: 2.00kg
Certificated: ISO, CE

Click country for live stock

Ships from

China

Germany

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the United States, United Kingdom, European Union, Australia, and Russia are advised to select local warehouses first. This ensures faster delivery, easier after-sales service, and avoids customs clearance, saving both time and cost. Customers from other countries should choose the China warehouse.

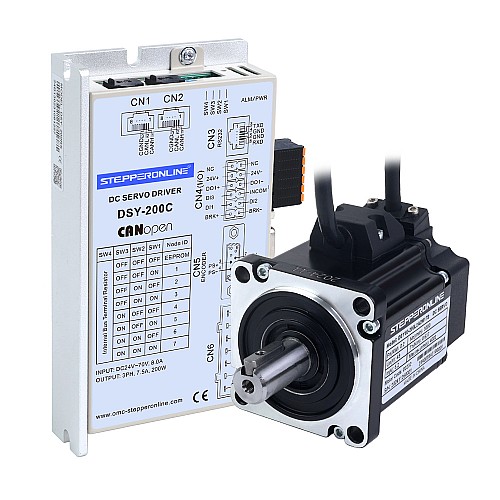

This is the latest DSY series DC servo system, consisting of a 48VDC 200W servo motor and a 24-70VDC 200W CANopen servo driver. The servo motor has a rated torque of 0.637Nm, a peak torque of 1.91Nm, and a rated speed of 3000rpm.
The DSY-C servo system supports CANopen communication control, featuring built-in error detection and retransmission mechanisms. Compared to RS485, it delivers faster response times, enhanced noise immunity, and multi-master network support.
It can be widely used in various applications such as mobile robots (AMR, AGV), service robots, special robots, logistics warehousing and sorting, medical equipment, instruments, and light textile industries, where voltage and size constraints are important.

Items in Kit

1 x DSY-200C: 200W CANopen DC Servo Motor Driver
1 x DSY60-200L2A2M17S: 200W 48V DC Servo Motor 3000rpm 0.637Nm 17-Bit Encoder IP65

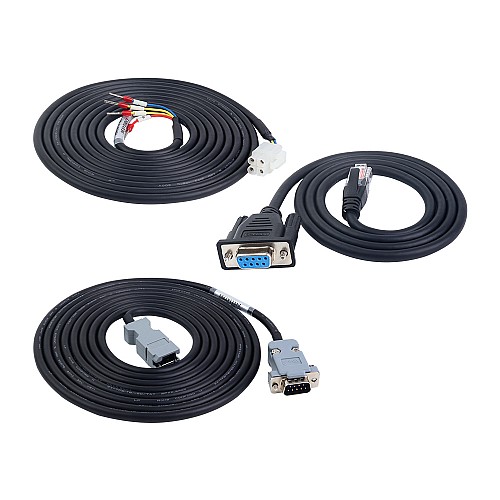

1 x P1-DS-03P08M: 3.0m Motor Cable
1 x E2-DS-03AM: 3.0m Encoder Cable
1 x RS232-5: 1.0m Debugging Cable

Servo Driver Specification

Part Number: DSY-200C
Control method: CANopen
Continuous Output Current: 7.5A
Maximum Output Current: 24.0A
Power Supply Input: 24-70VDC
Rated power 200W
Dimension: 141*75.5*25.4mm

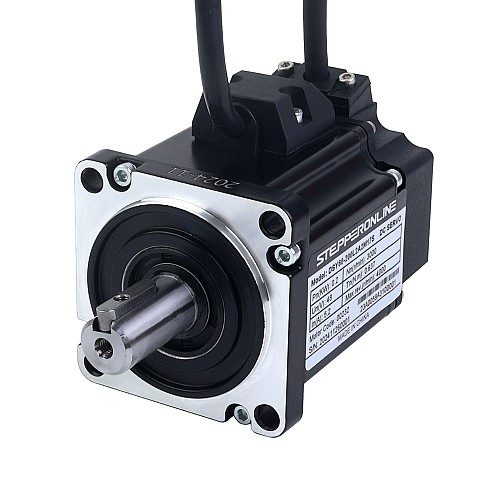

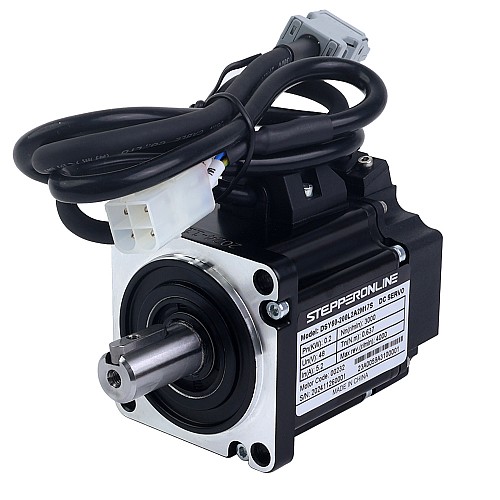

Servo Motor Specification

Part Number: DSY60-200L2A2M17S
Rated Power: 200W
Rated Voltage: 48VDC
Rated Torque: 0.637Nm
Peak Torque: 1.91Nm
Rated Current: 5.2A
Rated Speed: 3000rpm
Torque Const: 0.123N.m/A
Line-line Resistance: 0.86ohms ± 10%
Line-line Inductance: 1.46mH ± 20%
Inertia: 0.27kg*m²*10^-4
Encoder: 17-bit single-turn magnetic incremental encoder
Poles: 10
IP Rating: IP65
Shaft diameter: 14mm
Cable Length: 3m(optional lengths are 1.5m and 5m)

Please download DSY series servo debug software here.

To learn more about the differences between all servo motors sold on STEPPERONLINE, please refer to this article.

The DSY series debugging software by STEPPERONLINE was developed and tested on Windows 10. Using other Windows versions may cause compatibility issues (e.g., garbled text) or affect software functionality.

Electrical Specification
Control Modes	CANopen
Encoder Resolution	17bit
Encoder Type	Magnetic Incremental
Input Voltage(V)	24 - 70VDC
Peak Speed(rpm)	4000
Peak Torque(Nm)	1.91
Rated Power(W)	200
Rated Speed(rpm)	3000
Rated Torque(Nm)	0.637
Rated Voltage(V)	48VDC
With Brake	No
Physical Specification
Aviation Plug or Not	No
Frame Size(mm)	60 x 60
Integrated or Not	No
Inventory Method	Dedicated Inventory
IP Rating	65
Shaft Diameter(mm)	14

File	Size
DSY60-200L2A2M17S.STEP	2.58MB	Download
DSY60-200L2A2M17S_Full_Datasheet.pdf	132.88KB	Download
DSY-200C.STEP	16.54MB	Download
DSY-C.EDS	36.81KB	Download
DSY-C_Series_Low_Voltage_Servo_Drive_User_Manual(V1.0).pdf	12.31MB	Download
