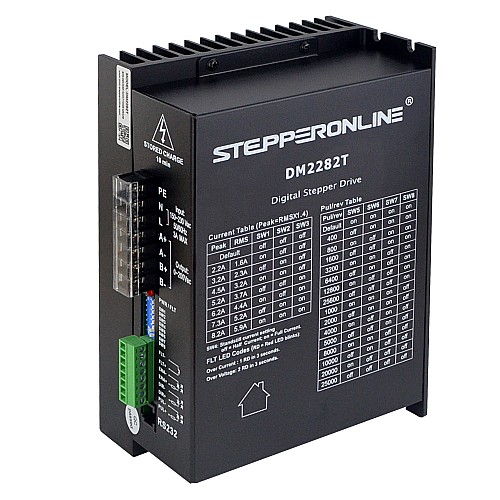

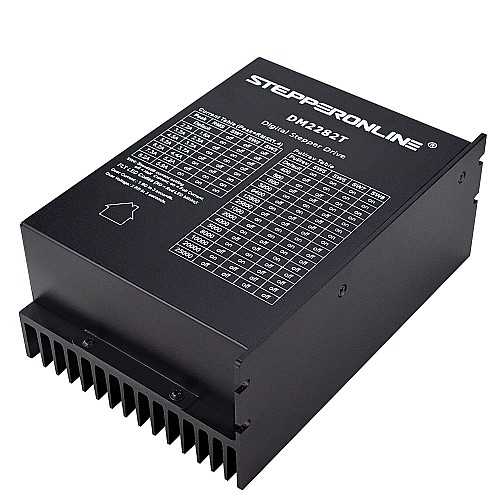

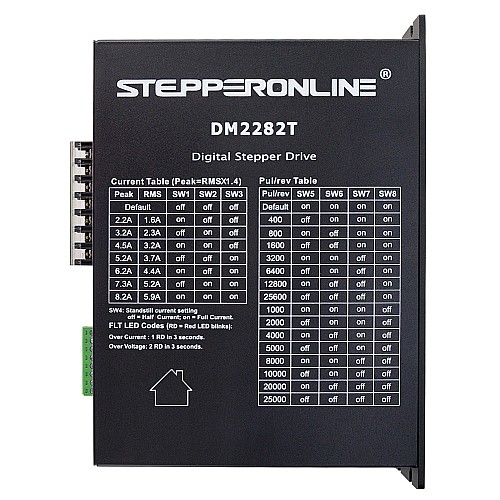

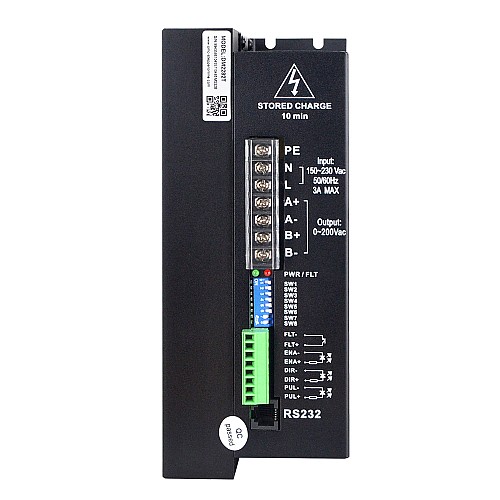

Digital Stepper Driver 0.5-8.2A 180-240VAC for Nema 34,42 Stepper Motor
$146.14
5 + $137.29
10 + $129.44
50 + $122.44
100 + $116.17
- In Stock: 10000
- Model: DM2282T
- Gross Weight: 1.70kg
- Certificated: ISO, CE, UKCA
Available Options
Ships within 24 hours for items in stock!
The DM2282T is a fully digital stepper drive developed with advanced DSP control algorithm based on the latest motion control technology. It has achieved a unique level of system smoothness, providing optimal torque and nulls mid-range instability. Its motor auto-identification and parameter auto-configuration feature offers quick setup to optimal modes with different motors. Compared with traditional analog drives, DM2282T can drive a stepper motor at much lower noise, lower heating, and smoother movement. Its unique features make DM2282T an ideal choice for high requirement applications.
Key Features:
- Anti-Resonance provides optimal torque and nulls mid-range instability
- Motor auto-identification and parameter auto-configuration technology, offers optimal responses with different motors
- Multi-Stepping allows a low resolution step input to produce a higher microstep output, thus offers smoother motor movement
- Supply voltage up to 240VAC
- Output current programmable, from 0.5A to 8.2A. It can also be set via DIP switches
- Pulse input frequency up to 200KHz, TTL compatible and optically isolated input
- Automatic idle-current reduction
- Suitable for 2-phase and 4-phase motors
- Support PUL/DIR and CW/CCW modes
- Over-voltage, Under-voltage, over-current, phase-error protections
Electrical Specifications:
- Output Peak Current: 0.5 - 8.2A
- Input Voltage: 180 - 240VAC
- Logic Signal Current: 7 - 16mA(Typical 10mA)
- Pulse Input Frequency: 0 - 200kHz
- Isolation Resistance: 500MΩ
Operating Environment and other Specifications(Tj = 25℃/77℉):
- Cooling: Natural Cooling or Forced cooling
- Environment: Avoid dust, oil fog and corrosive gases
- Ambient Temperature: 0 - 50℃
- Humidity: 40% - 90% RH
- Operating Temperature: 70℃ MAX
- Vibration: 5.9m/s2 Max
- Storage Temperature: -20 - 65℃
- Weight: Approx.1300g(45.86oz)
Electrical Specification | |
Alarm Output | Yes |
Brake Output | No |
Control Modes | Pulse Mode |
Encoder Feedback | No |
Input Voltage Reference(V) | 180 - 240AC |
Integrated with Pulser | No |
Max. Output Current RMS(A) | 5.5 |
No. of Phase | 2 |
Input Voltage(V) | 180 - 240AC |
Output Current(A) | 0.5 - 8.2 |
Microstep(Steps/rev.) | 400 - 25000 |
Max. Pulse Input(kHZ) | 200 |
Physical Specification | |
Inventory Method | Dedicated Inventory |
Product Series | T Series |
Weight(g) | 1300 |
