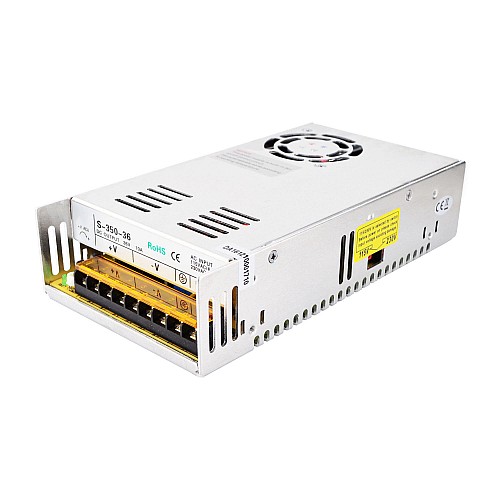

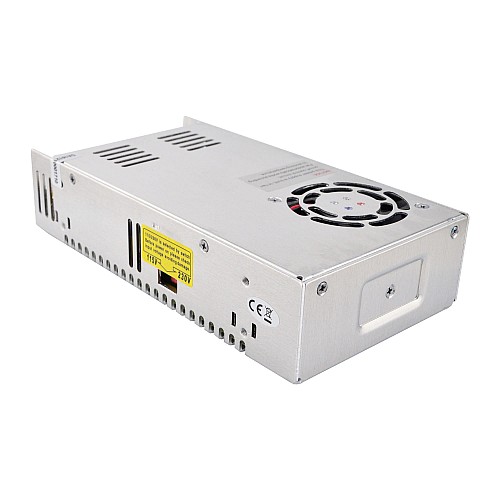

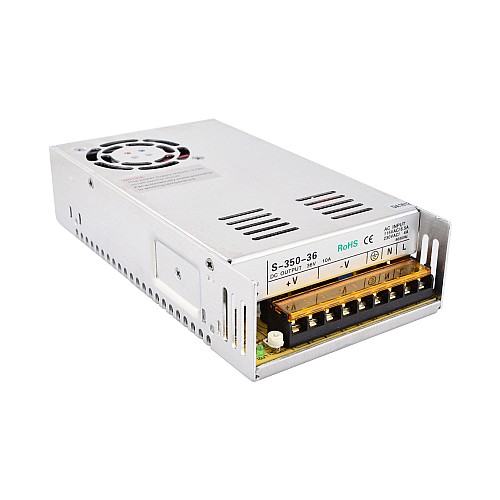

350W 36V 9.7A 115/230V Switching Power Supply Stepper Motor CNC Router Kits

This professional 350W  9.8A Switching CNC 36V Power Supply  can be widely used in Industrial Automation and CNC Stepper/Servo System.

115V and 230V can be chosen by switch. Powerful functions(eg. PWM control) and professional designs (Built-in big fan for cooling) ensure high efficiency and high reliability of the 36v power supply. Low cost also makes it more acceptable for general usage.

Key Features

• 36V power supply DC 9.8A output
• AC input voltage range: 93~132V/176~264VAC
• 115V/230V AC selected by switch
• High efficiency low cost
• Forced air cooling by built-in DC fan
• Low output ripple and yawp
• Over current, over voltage, short circuit and overheat protections
• 215*115*50mm (L*W*H)

Resources

• Full Datasheet: S-350-36.pdf
