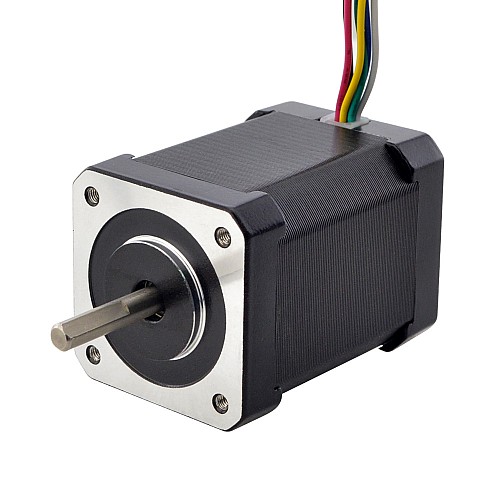

Nema 17 Unipolar 1.8deg 65Ncm (92oz.in) 1.2A 7.2V 42x42x60mm 6 Wires

2 reviews - Write a review

$17.08

5 + $15.60

10 + $14.86

50 + $14.11

100 + $13.37

Model: 17HS24-1206S
In Stock: 100
SKU: 17HS24-1206S

Available Options

Ship from

China

Germany

Qty

Add to Cart

Buy Now Question

Add to Wish List Compare this Product

This unipolar Nema 17 stepper motor with step angle 1.8deg and size 42x42x48mm. It has 6 wires, each phase draws 1.2.0A, with holding torque up to 65Ncm (92oz.in).

Electrical Specification

Manufacturer Part Number: 17HS24-1206S
Motor Type: Unipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 65Ncm(92oz.in)
Rated Current/phase: 1.2A
Phase Resistance: 6.0ohms
Inductance: 7.0mH ± 20%(1KHz)

Physical Specification

Frame Size: 42 x 42mm
Body Length: 60mm
Shaft Diameter: Φ5mm
Shaft Length: 24mm
D-cut Length: 15mm
Number of Leads: 6
Lead Length: 500mm
Weight: 500g

Connection

A+	O+	A-	B+	O-	B-
BLK	YEL	GRN	RED	WHT	BLU

Resources

Full Datasheet: 17HS24-1206S.pdf

Electrical Specification
Inductance(mH)	7
Phase Resistance(ohm)	6
Rated Current(A)	1.2
Step Angle(deg.)	1.8
Bipolar/Unipolar	Unipolar
Holding Torque(Ncm)	65
Holding Torque(oz.in)	92
Physical Specification
IP Rating	40
Frame Size(mm)	Nema 17 (42 x 42)
Body Length(mm)	60
Single Shaft/Dual Shaft	Single Shaft
Output Shaft Type	D-Cut
Shaft Diameter(mm)	5
Shaft Length(mm)	24
No. of Lead	6
Lead Length(mm)	500
Weight(g)	500
