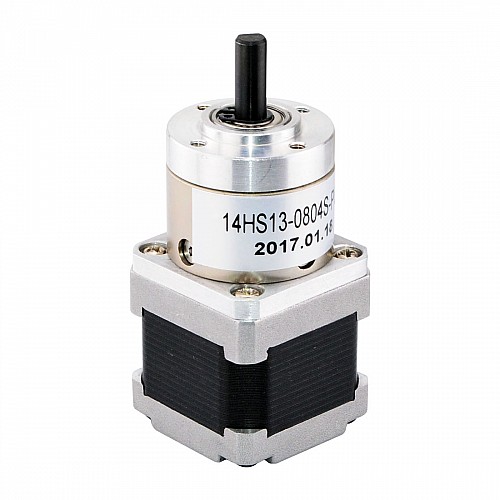

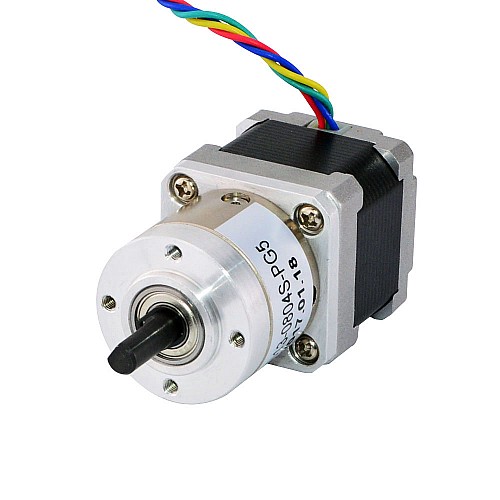

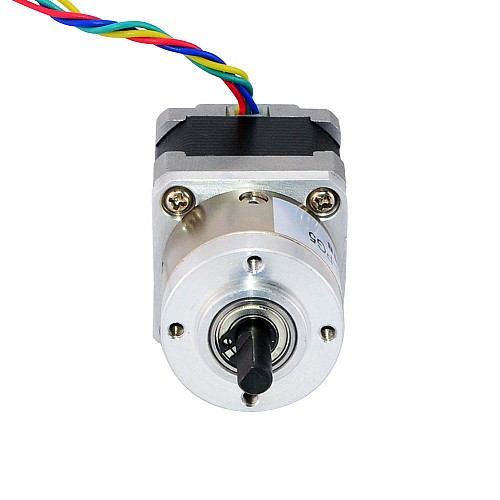

Nema 14 Stepper Motor Bipolar L=34mm w/ Gear Ratio 5:1 Planetary Gearbox
$34.92
5 + $33.11
10 + $31.47
50 + $29.99
100 + $28.64
- In Stock: 10000
- Model: 14HS13-0804S-PG5
- Gross Weight: 0.38kg
- Certificated: ISO, CE, UKCA, RoHS
Available Options
Ships within 24 hours for items in stock!
This Nema 14 stepper motor with 34mm body and 1.0A rated current, integrated a planetary gearbox of 5.18:1 gear ratio. It's a good solution to applications that with limited space but need low speed and/or high torque.
Electrical Specification
- Manufacturer Part Number: 14HS13-0804S-PG5
- Motor Type: Bipolar Stepper
- Step Angle: 0.35deg
- Holding Torque without Gearbox: 14Ncm(19.8oz.in)
- Rated Current/phase: 1.0A
- Phase Resistance: 3.2ohms
- Inductance: 4.5mH ± 20%(1KHz)
Gearbox Specifications
- Gearbox Type: Planetary
- Gear Ratio: 5.18:1
- Efficiency: 90%
- Backlash at No-load: <=3deg
- Max.Permissible Torque: 3Nm(424.83oz.in)
- Moment Permissible Torque: 5Nm(708.06oz.in)
- Shaft Maximum Axial Load: 50N
- Shaft Maximum Radial Load: 100N
Physical Specifications
- Frame Size: 35 x 35mm
- Motor Length: 34mm
- Gearbox Length: 29.2mm
- Shaft Diameter: Φ6mm
- Shaft Length: 18mm
- D-cut Length: 12mm
- Number of Leads: 4
- Lead Length: 300mm
- Weight: 290g
Connection
A+ |
A- |
B+ |
B- |
Red |
Green |
Yellow |
Blue |
Electrical Specification | |
Current(A) | 1.0 |
Has Torque/Thrust Curve? | Yes |
Holding Torque w/o Gearbox(N.m) | 0.14 |
Inductance(mH) | 4.5 |
Phase Resistance(ohm) | 3.2 |
Product Type | Geared Stepper Motor |
Bipolar/Unipolar | Bipolar |
Physical Specification | |
Inventory Method | Dedicated Inventory |
IP Rating | 40 |
Frame Size(mm) | Nema 14 (35 x 35) |
Body Length(mm) | 62.2 |
Gearbox Type | Economy Planetary |
Gear Ratio(xx:1) | 5.18 |
Backlash at No-load | <=3deg |
Single Shaft/Dual Shaft | Single Shaft |
Output Shaft Type | D |
Shaft Diameter(mm) | 6 |
Shaft Length(mm) | 18 |
No. of Lead | 4 |
Lead Length(mm) | 300 |
Weight(g) | 290 |
