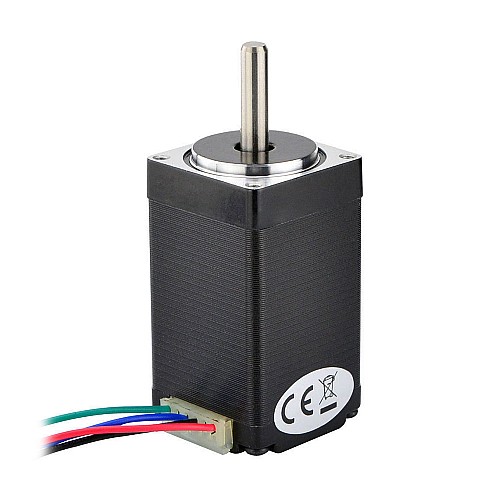

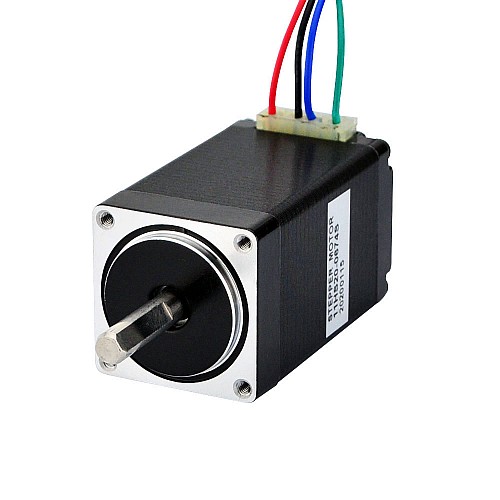

Nema 11 Bipolar 1.8deg 12Ncm(16.99oz.in) 0.67A 28x28x51mm 4 Wires

20 reviews - Write a review

$10.76

5 + $10.26

10 + $9.79

50 + $9.37

100 + $8.99

In Stock: 200
Model: 11HS20-0674S
Gross Weight: 0.30kg
Certificated: ISO, CE, UKCA, RoHS

Click country for live stock

Ships from

China

United States

Germany

Japan

Qty

Add to Cart

Question

Add to Wish List Compare this Product

Ships within 24 hours!

Ships within 24 hours basically means that your product will be shipped out or dispatched from our warehouse within 24 hours if it has enough stock. Read more.

Choose a Local Warehouse, Get More Benefits!

Customers from the United States, United Kingdom, European Union, Australia, and Russia are advised to select local warehouses first. This ensures faster delivery, easier after-sales service, and avoids customs clearance, saving both time and cost. Customers from other countries should choose the China warehouse.

This bipolar nema 11 stepper motor with step angle 1.8deg and size 28x28x51mm. It has 4 wires, each phase draws 0.67A, with holding torque 12Ncm(16.99oz.in). Planetary Gearbox is available for this model.

Electrical Specification

Manufacturer Part Number: 11HS20-0674S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 12Ncm(16.99oz.in)
Rated Current/phase: 0.67A
Phase Resistance: 9.2ohms
Inductance: 5.8mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

Physical Specification

Frame Size: 28 x 28mm
Body Length: 51mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-cut Length: 15mm
Number of Leads: 4
Cable Length: 500mm
Weight: 190g

Connection

A+	A-	B+	B-
Black	Green	Red	Blue

Product Type
Product Type	Hybrid Stepper Motor
Electrical Specification
Bipolar/Unipolar	Bipolar
Has Torque/Thrust Curve?	Yes
Holding Torque(Ncm)	12
Holding Torque(oz.in)	16.99
Inductance(mH)	5.8
Phase Resistance(ohms)	9.2
Rated Current(A)	0.67
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	51
Cable Length(mm)	500
Frame Size(mm)	Nema 11 (28 x 28)
Inventory Method	Dedicated Inventory
IP Rating	40
No. of Lead	4
Output Shaft Type	D
Product Series	S
Shaft Diameter(mm)	5
Shaft Length(mm)	20
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	190

Motor Shaft
Cable
Connector
Encoder
Brake
Gearbox

File	Size
11HS20-0674S.STEP	1.16MB	Download
11HS20-0674S_Torque_curve.pdf	213.04KB	Download
11HS20-0674S_Full_Datasheet.pdf	118.76KB	Download

Tags: Output Shaft Type: D, Shaft Diameter(mm): 5, Shaft Length(mm): 20, No. of Lead: 4, Lead Length(mm): 500, Weight(g): 190, Single Shaft/Dual Shaft: Single Shaft, Holding Torque(Ncm): 12, Rated Current(A): 0.67, Holding Torque(oz.in): 16.99, Bipolar/Unipolar: Bipolar, Step Angle(deg.): 1.8, Phase Resistance(ohms): 9.2, Inductance(mH): 5.7, Body Length(mm): 51, Frame Size(mm): Nema 11 (28 x 28), Product Type: Hybrid Stepper Motor, Product Series: S, IP Rating: 40, Has Torque/Thrust Curve?: Yes, Inventory Method: Dedicated Inventory
