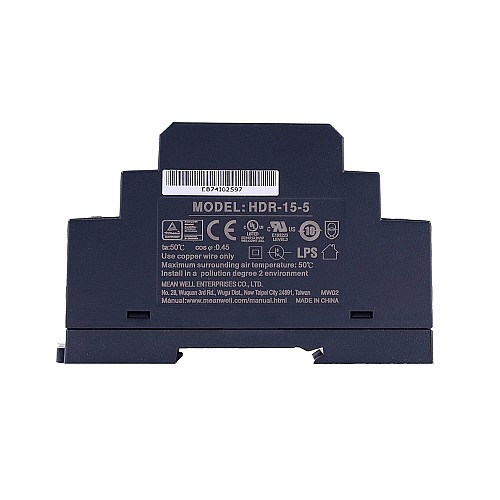

HDR-15-5 MEAN WELL 15W 5VDC 2.4A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply

HDR-15-5 MEAN WELL 15W 5VDC 2.4A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
HDR-15-5 MEAN WELL 15W 5VDC 2.4A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
HDR-15-5 MEAN WELL 15W 5VDC 2.4A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
HDR-15-5 MEAN WELL 15W 5VDC 2.4A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
HDR-15-5 MEAN WELL 15W 5VDC 2.4A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
HDR-15-5 MEAN WELL 15W 5VDC 2.4A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
HDR-15-5 MEAN WELL 15W 5VDC 2.4A 115/230VAC Ultra Slim Step Shape DIN Rail Power Supply
$11.00
5 + $10.59
10 + $10.43
50 + $10.19
100 + $10.02
  • Model: HDR-15-5
  • Brand: MEAN WELL
  • Stock Status: 959
  • SKU: HDR-15-5

Available Options

MEAN WELL HDR-15 is one economical ultra slim 15W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 17.5mm(1SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current.
HDR-15 is designed with plastic housing that it can effectively preventuser from electric hazards. With working efficiency up to 87%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1,UL508,UL62368-1,BS EN/EN61558-2-16) make HDR-15 a very competitive power supply solution for household and industrial applications.


Features

  • Brand MEANWELL
  • 5V DC 2.4A output
  • AC input voltage range: 85 ~ 264VAC
  • Rated power: 12W
  • UItra slim design with 17.5mm(1SU) width
  • Universal input 85~264VAC(277VAC operational)
  • No load power consumption<0.3W
  • Isolation class II
  • Pass LPS (Limited power source)
  • DC output voltage adjustable
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection (working temperature:-30~+70°C)
  • DIN rail TS-35/7.5 or 15 mountable
  • LED indicator for power on
  • Over voltage category Ⅲ
  • 3 years warranty

Applications

  • Industrial automation machinery
  • Industrial control system
  • Mechanical and electrical equipment
  • Electronic instruments, equipments or apparatus
  • Household appliances

Resources

Power Supply Specification
Brand MEANWELL
Power Type DIN Rail Power Supply
Output Voltage(VDC) 5
Power(W) 12
Max. Output Current(A) 2.4
Input Voltage(VAC/VDC) 85 - 264 / 120 - 370
Input Frequency(Hz) 47 - 63
Efficiency(%) 80%
PFC Function No
Dim.(LxWxH)(mm) 17.5 x 90 x 54.5 / 0.69 x 3.54 x 2.15
