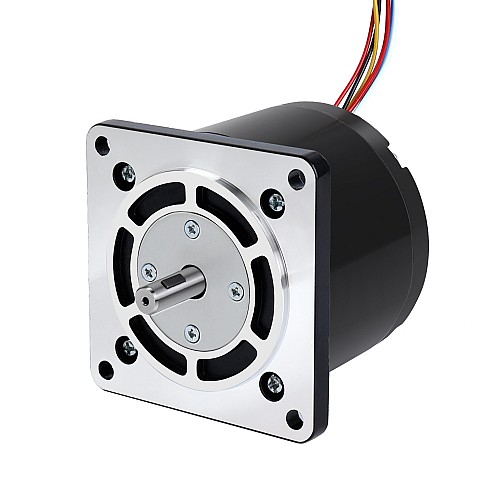

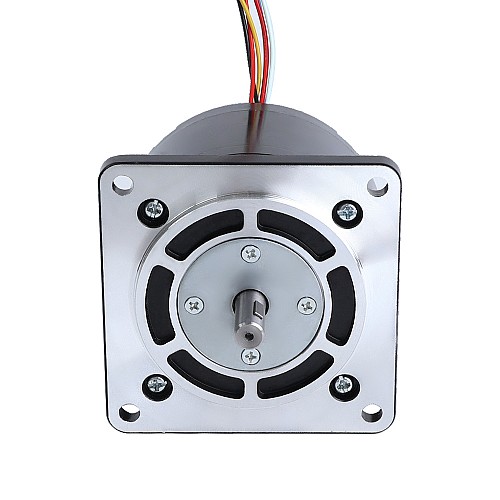

Ф90mm 3.2Nm(453.16oz.in) 3A 5-Phase Variable Reluctance Stepper Motor
$55.28
5 + $52.68
10 + $50.31
50 + $48.15
100 + $46.16
- In Stock: 10000
- Model: 35VR26-3005S
- Gross Weight: 2.01kg
- Certificated: ISO, CE, UKCA, RoHS
Available Options
Ships within 24 hours for items in stock!
This is a 5-phase variable reluctance motor with a rated current of 3.0A and a holding torque of 3.2Nm(453.16oz.in). Its simplicity of construction, ability to operate efficiently at high speeds, and high power density make it suitable for applications that require easy assembly and maintenance, high-speed operation, and the production of a lot of power in a relatively small package.
Electrical Specification
- Manufacturer Part Number: 35VR26-3005S
- Number of phase: 5
- Step Angle: 0.36/0.72deg
- Holding Torque: 3.2Nm(453.16oz.in)
- Rated Current/Phase: 3.0A
- Phase Resistance: 0.86ohms
- Inductance: 16mH±16%(1KHz)
Physical Specification
- Frame Size: 90 x 90mm
- Body Length: 67mm
- Shaft Diameter: Φ9mm
- Shaft Length: 27mm
- Number of Leads: 6
- Lead Length: 300mm
- Weight: 1.82kg
Connection
Pin |
0 |
A |
B |
C |
D |
E |
Color |
Red |
Red |
Yellow |
Blue |
White |
Black |
Length |
300mm |
280mm |
280mm |
280mm |
280mm |
280mm |
Electrical Specification | |
Has Torque/Thrust Curve? | No |
Inductance(mH) | 16 |
No. of Phase | 5 |
Open-loop/Closed-loop | Open-loop |
Phase Resistance(ohm) | 0.86 |
Product Type | Variable Reluctance Motor |
Rated Current(A) | 3.0 |
Step Angle(deg.) | 0.36/0.72 |
Holding Torque(Ncm) | 320 |
Holding Torque(oz.in) | 453.16 |
Insulation Class | B 130C(266F) |
Physical Specification | |
Inventory Method | Dedicated Inventory |
Frame Size(mm) | Nema 35 (Φ90) |
Body Length(mm) | 67 |
Output Shaft Type | O |
Shaft Diameter(mm) | 9 |
Shaft Length(mm) | 27 |
Lead Length(mm) | 300 |
Weight(g) | 1820 |
File | Size | |
---|---|---|
35VR26-3005S Full_Datasheet | 139.26KB | Download |
